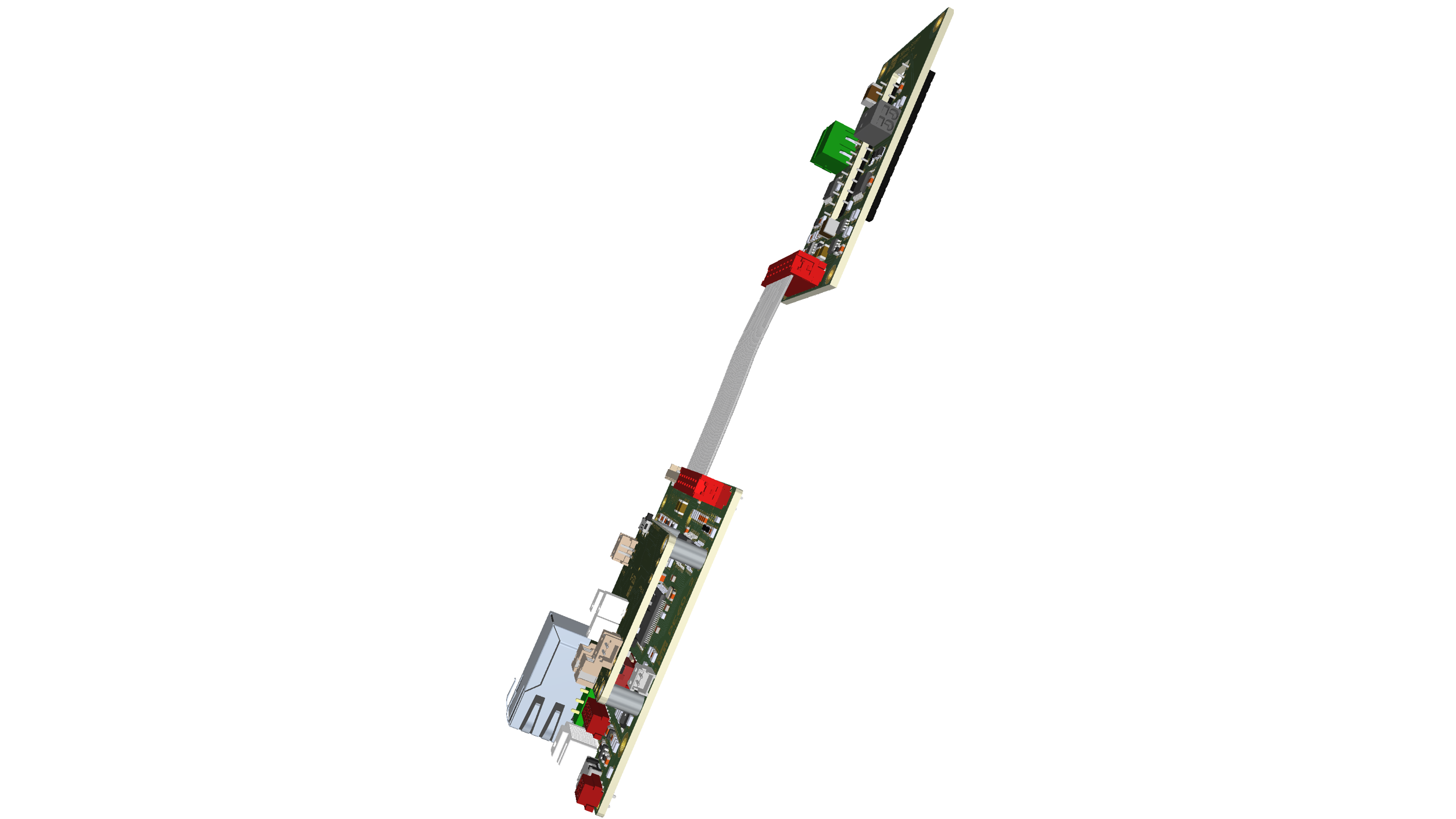

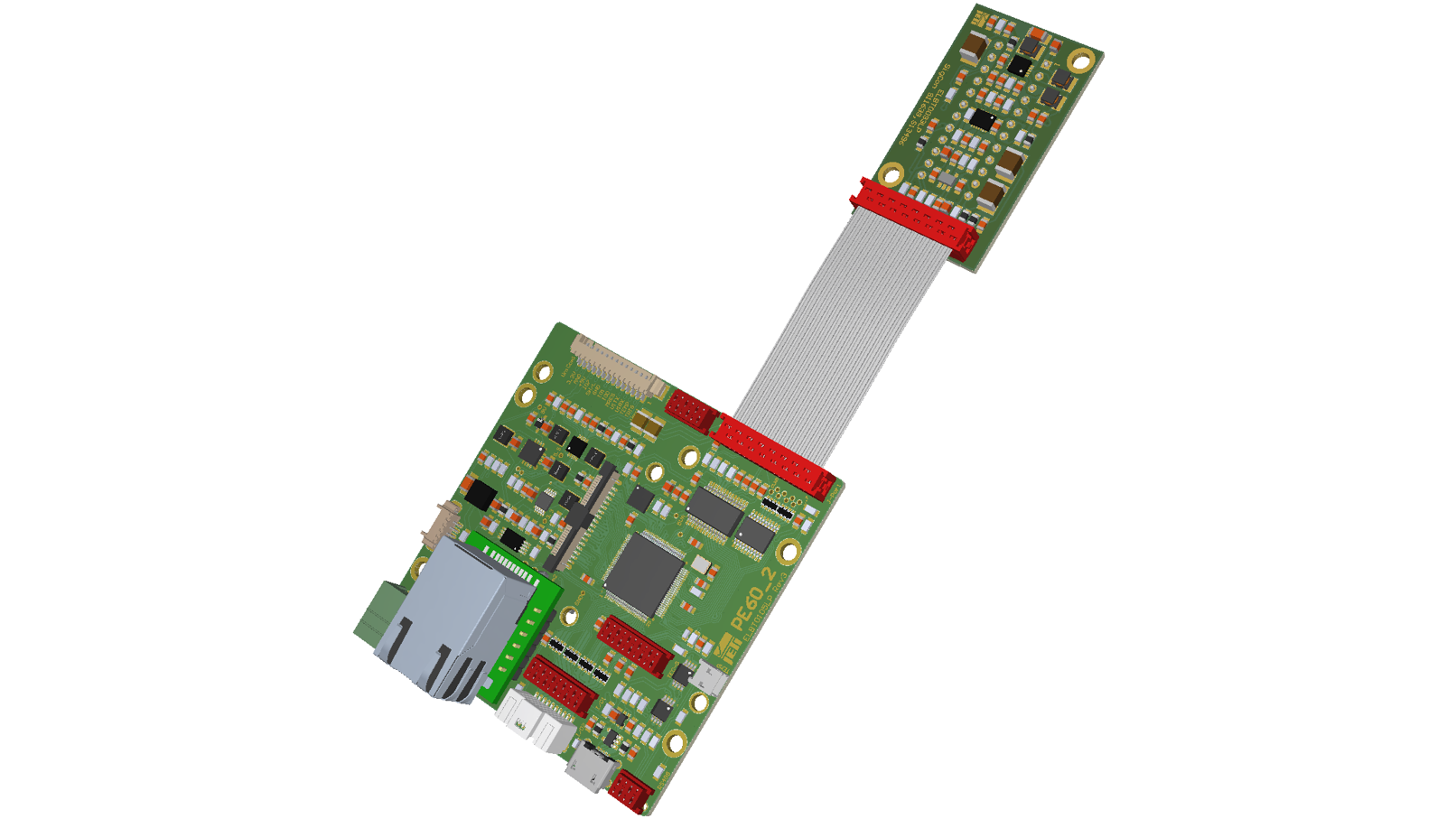

Electrical parameters

• 32 bit, 252 MHz RISC Processor
• Power Supply via USB or 5 V external
• Analog-Digital-Conversion: 16 bit, up to 10 MS/s* with programmable gain and offset
• JETI Universal Sensor Connector via 16-pin flat-ribbon-cable
• Fast and low jitter trigger input and output, TTL compatible
• Shutter/Lamp control output, firmware configurable
• Flashlamp control with programmable length and interval timing
• Stabilized 5 V Output
• 8 GPIO-Pins, 3 Analog Inputs (12 Bit, 18 MS/s)*

Communication interfaces

• USB-HighSpeed (480 Mbit/s, virtual COM Port)*
• LV-TTL UART (25 MBaud, 8N1)*
• SPI (50 Mbit/s, Master/Slave) *
• 10/100 Ethernet LAN onboard (optional)

Mechanical dimensions

• 70 x 70 x 20 mm³

*maximum theoretical speed, practical values are application specific

Firmware

• Continuous, 2D-Image and vertical multichannel measurement modes
• Dark counts, reference counts, transmission, absorbance, (pixelwise or in wavelength steps with pixel wavelength fit up to 4th order)
• Readout configuration: Averaging, Oversampling, Offset, Gain, Pixelrange, Pixelbinning
• SCPI like Control Syntax, similar on all JETI electronics
• Windows DLLs

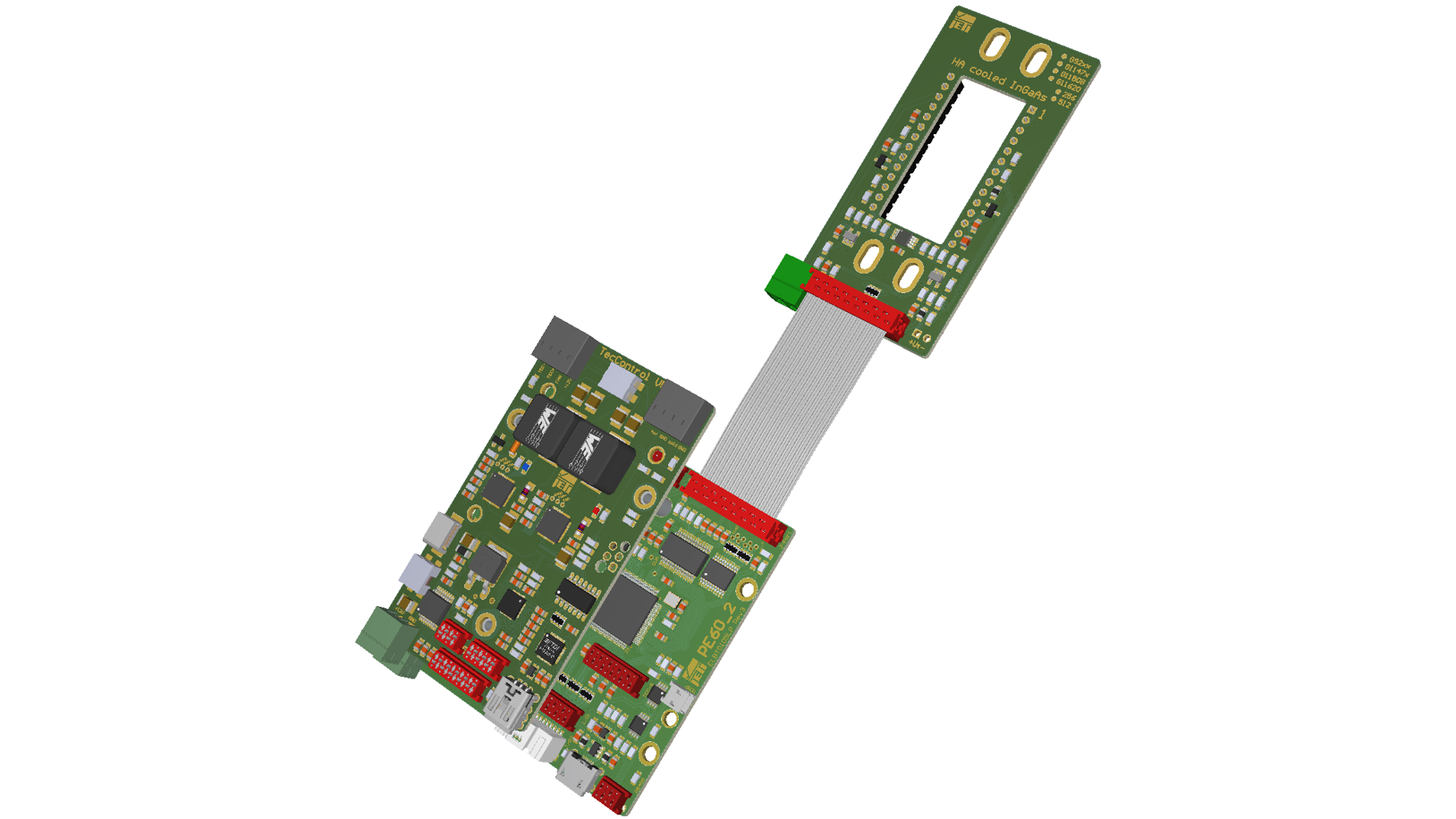

TEC-add-on-Board

• High Power TEC driver up to 10 V, 3.5 A and <10 mK accuracy
• Regulation Parameters programmable via PC-Software
