PE60_2

Readout electronics for high speed, process-control and multichannel applications

Processor:

96 MHz - 32 bit microprocessor

Speed:

16 bit 10 MS/s ADC

Interfaces:

USB 2.0 high speed, Ethernet, TTL-UART, SPI, RS422/485

Serial:

Trigger, Shutter/Lamp, 8(16) GPIO and 3 analog Input pins

Optional:

Thermoelectric cooler and led source populated as TEC-S add-on board

 Dimensions:

Main board: 70 mm x 70 mm x 20 mm
TEC-S board: 36 mm x 36 mm x 7 mm

 Supported sensors:

S837x, S11639, S13496, … (CMOS)
S838x, … (NMOS)
G13913 (InGaAs mini)
G11620, G92xx, … (uncooled InGaAs)
G1147x, G11620, G92xx, … (cooled InGaAs)
S10140, S10420, S11071, S1115x, S7030, … (BTCCD)
S10141, S11511, S11850, S1325x, S7031, … (cooled BTCCD)
Others on request

Read more

SDCM3

Economic one board solution, which can be extended to a standalone BT-Device

Processor:

252 MHz - 32 bit microprocessor

Speed:

16 bit 5 MS/s ADC

Interfaces:

USB 2.0 full speed, TTL-UART, SPI (LAN, Bluetooth add-on board)

Serial:

Trigger; Shutter/Lamp and 8 GPIO pins
User accessible nonvolatile memory of 64 kB

Optional:

microSD card; real time clock / calendar (RTCC); Li-ion battery powered

 Dimensions:

Main board: 36 mm x 53 mm x 15 mm
Add-on board: 36 mm x 53 mm x 12 mm

 Supported sensors:

S11639, S13496x, S8378 (CMOS)
G11620 (InGaAs)
C12880MA, … (micro-Spectrometer)

Read more

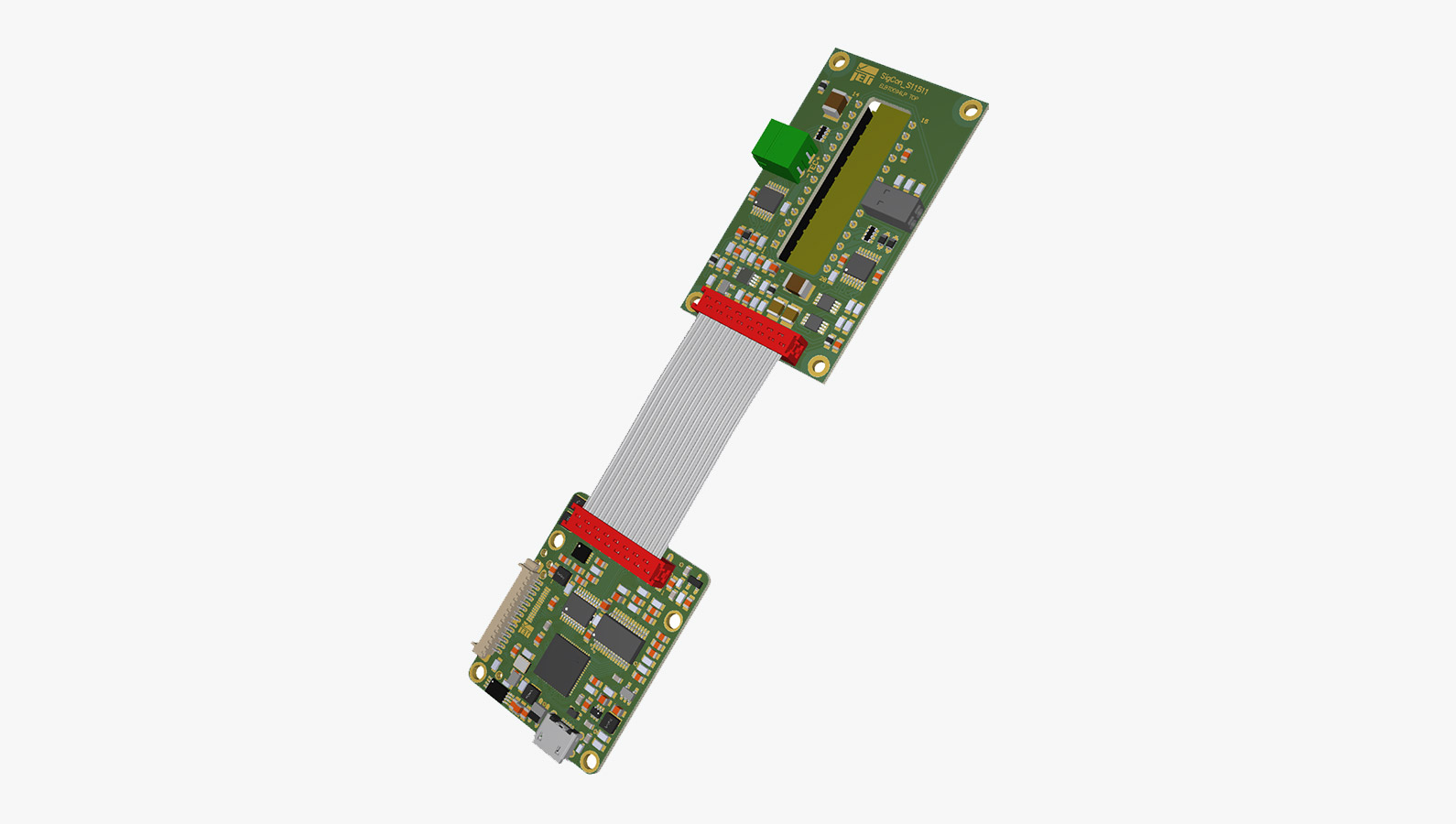

SDCM4

Tiny solution for a variety of sensors in mobile or general applications

Processor:

96 MHz - 32 bit microprocessor

Speed:

16 bit 5 MS/s ADC

Interfaces:

USB 2.0 high speed, TTL-UART, SPI

Serial:

Trigger; Shutter/Lamp and 3(8) GPIO pins

Optional:

Thermoelectric cooler and led source populated as TEC-S add-on board

 Dimensions:

Main board: 36 mm x 45 mm x 10 mm
TEC-S board: 36 mm x 36 mm x 7 mm

 Supported sensors:

Read more
