RU40/90

Broadband spectrometer

This compact spectrometer has an optimized optical scheme and hence improved stray light characteristics. The compact design allows its easy integration into custom specific applications. It is available in three different versions, which are all equipped with a mechanical shutter for easy dark offset correction.

Advantages

• Compact solutions with high optical quality and various electronics functions
• Easy realizable stand-alone solutions
• SCPI compatible control syntax
• Easy and precise baseline correction due to mechanical shutter

Controller functions

• Internal storage of wavelength-pixel relation
• Preprocessing of data, dark signal correction, absolute calibration
• Internal calculations like averaging, interpolation, transmission, reflexion, absorption, color coordinates
• Dedicated control syntax (SCPI compliant)

Peripherical elements

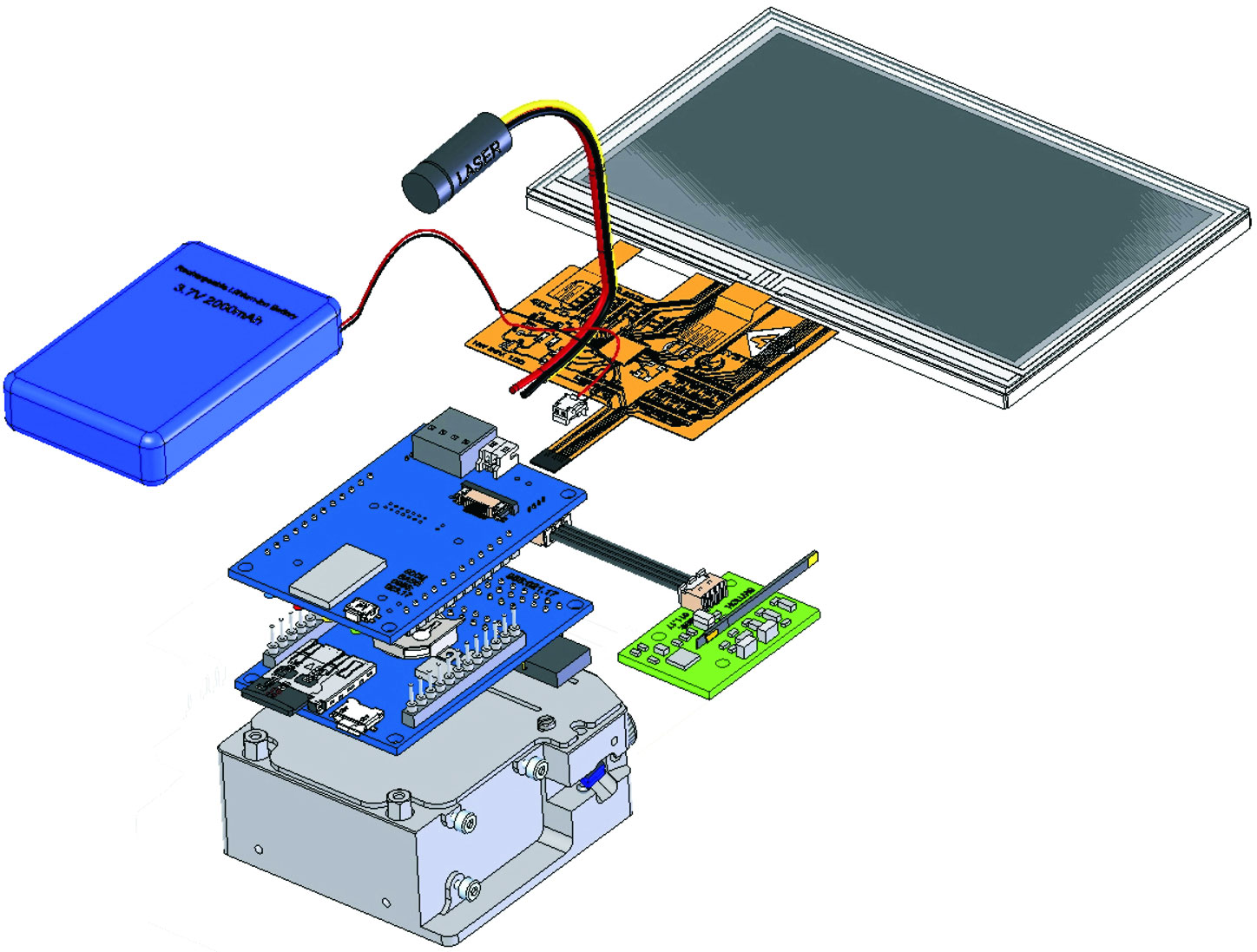

The figure above shows a complete RU40/90 system with all possible peripherical elements as piezo shutter, a display, a laser diode and a Li polymer battery. Bluetooth or alternatively LAN interfaces are on board. This system can be used for the simple and fast development of a portable or stationary device.

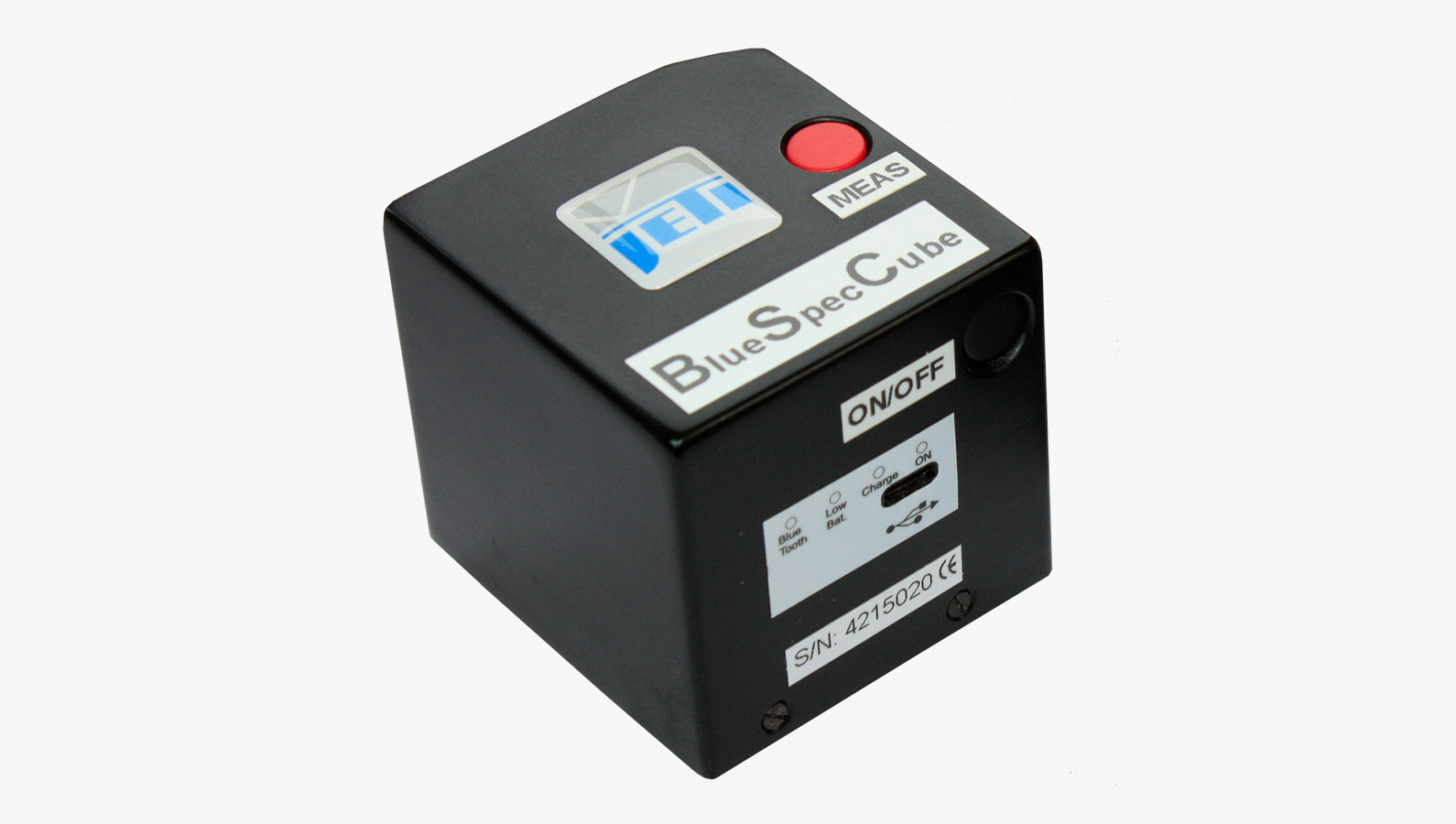

BlueSpecCube

BlueSpecCube is a version of the RU40/90 spectrometer with bluetooth, battery and switches for start and measurement. It can be easily used for own application specific systems. BlueSpecCube does not include an SD card slot, because it always has to be operated with a PC or laptop.

drawing BSC.png

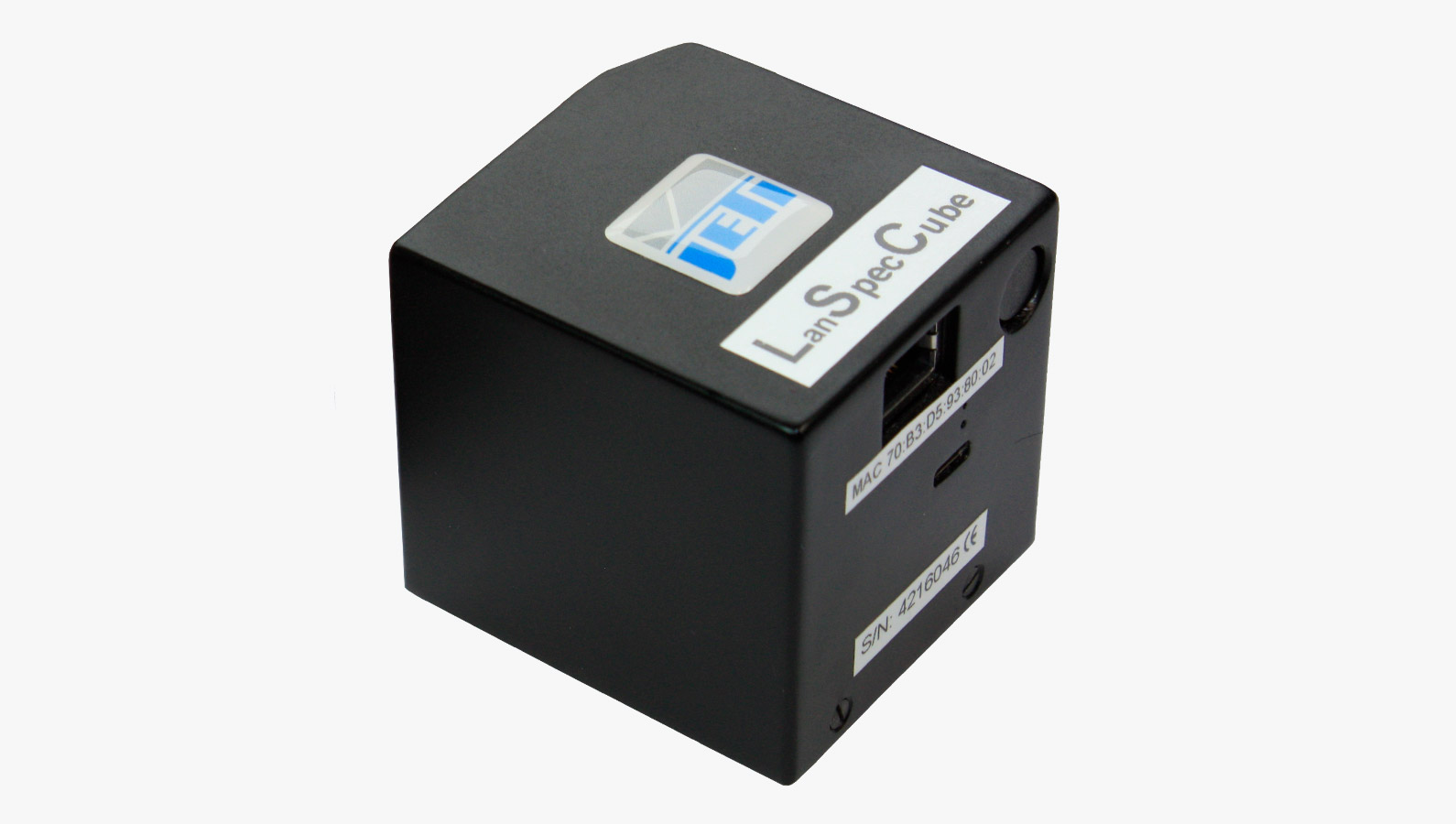

LanSpecCube

LanSpecCube has a LAN connection in addition to the USB interface, on request also with Power over Ethernet (POE).

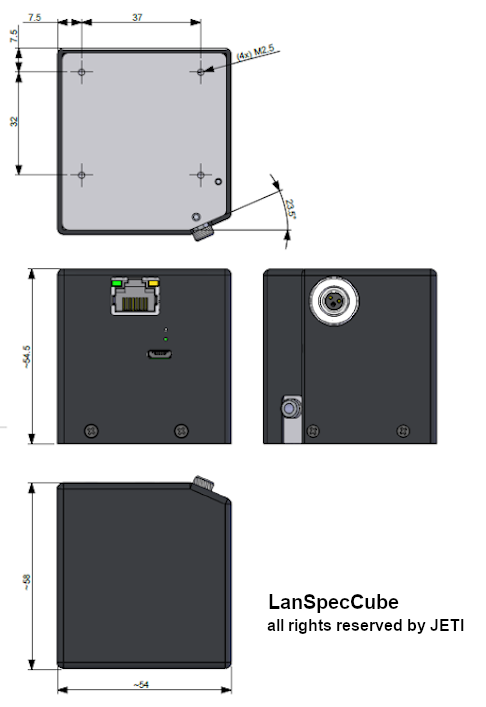

drawing LSC.png
