Please note our shipment instructions BEFORE sending!

JETI offer the following service for all its products (also for older devices which are out of production):

Device check up

For older models (production date before 2010) a check up is necessary to ensure a recalibration can be done successfully.

The device check up includes the fit and calibration status. It means, we check during several measurements wheater the device is still within the measuring uncertainty and the wavelength accuracy by comparison of the values with the reference values. The device check up will not be invoiced if the recalibration is performed afterwards.

Please contact us before sending in the device.

Spectroradiometer (specbos 1xx1, spectraval 15x1)

• Incoming inspection of the device
• First measuring test
• Mechanical and optical alignment test, if necessary readjustment
• Firm- and software updates (USB-stick will be replaced)
• For models with built-in battery: Check the performance of the battery. If the performance of the battery no longer meets the requirements, it will be replaced.
• Wavelength check and recalibration (low pressure discharge lamps HgAr, Cd, software JETI FitTool)
• Sensitivity recalibration (included in software JETI LiVal, but password protected)

  • Spectral Radiance with OL 455 (Gooch & Housego, traceable to NIST)
  • Spectral Irradiance with OL 200/ UV 40 (Gooch & Housego, traceable to NIST)
  • Spectral Radiant flux with Wi40/G (Osram, traceable to PTB)

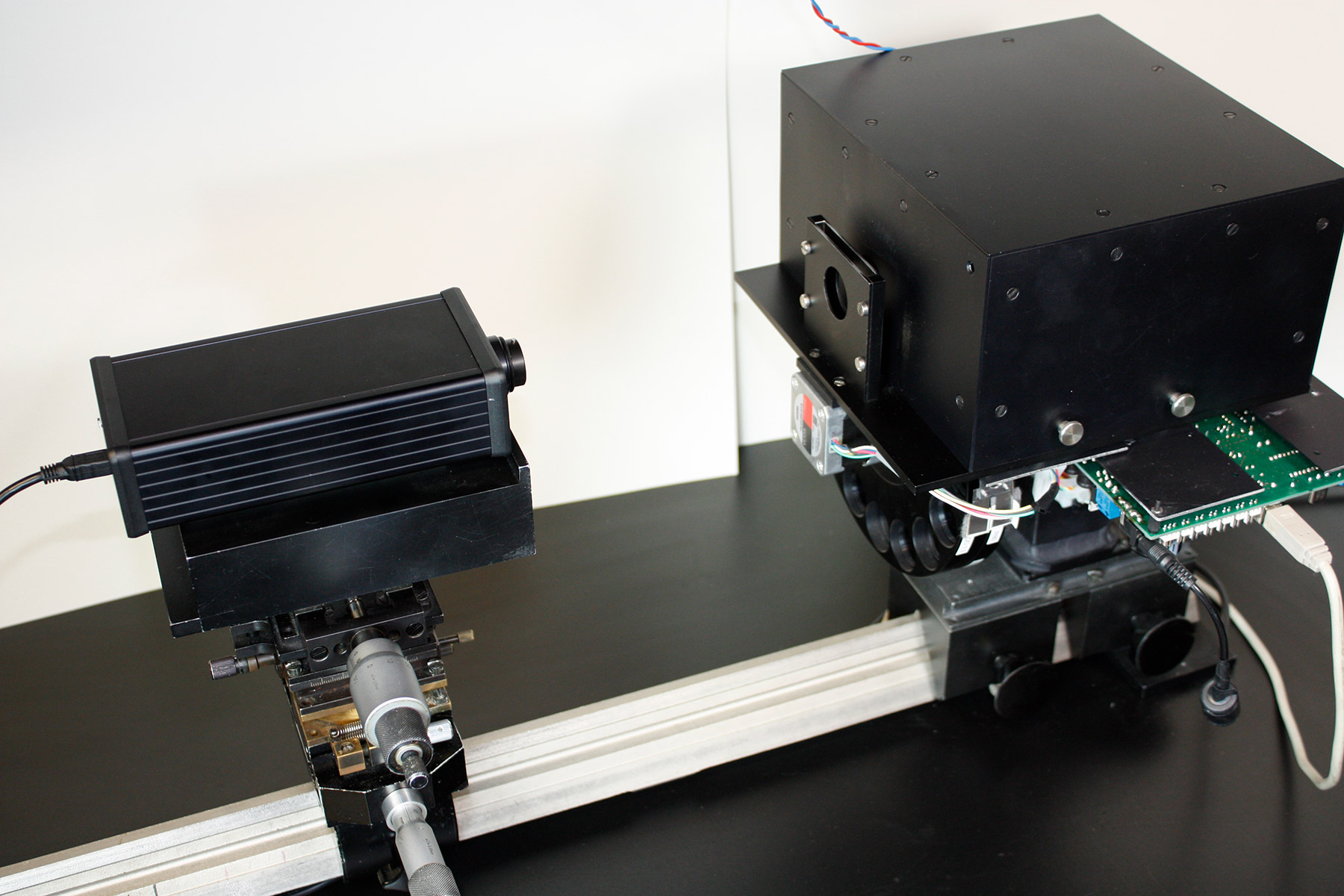

• Automatic test measurements (3 times on 20 different spectra) to check device stability, device intercomparability and comparability to a reference unit (CS-2000 of Konica Minolta)

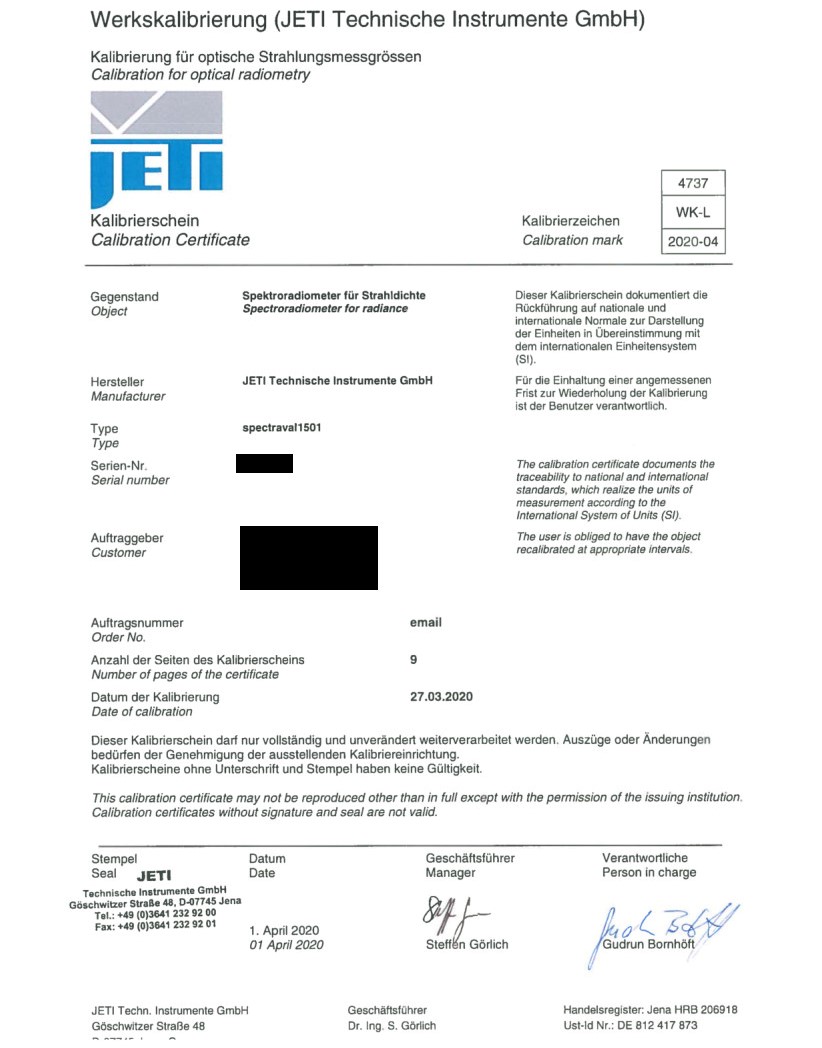

• Issuing of the calibration certificate (please see downloads below)

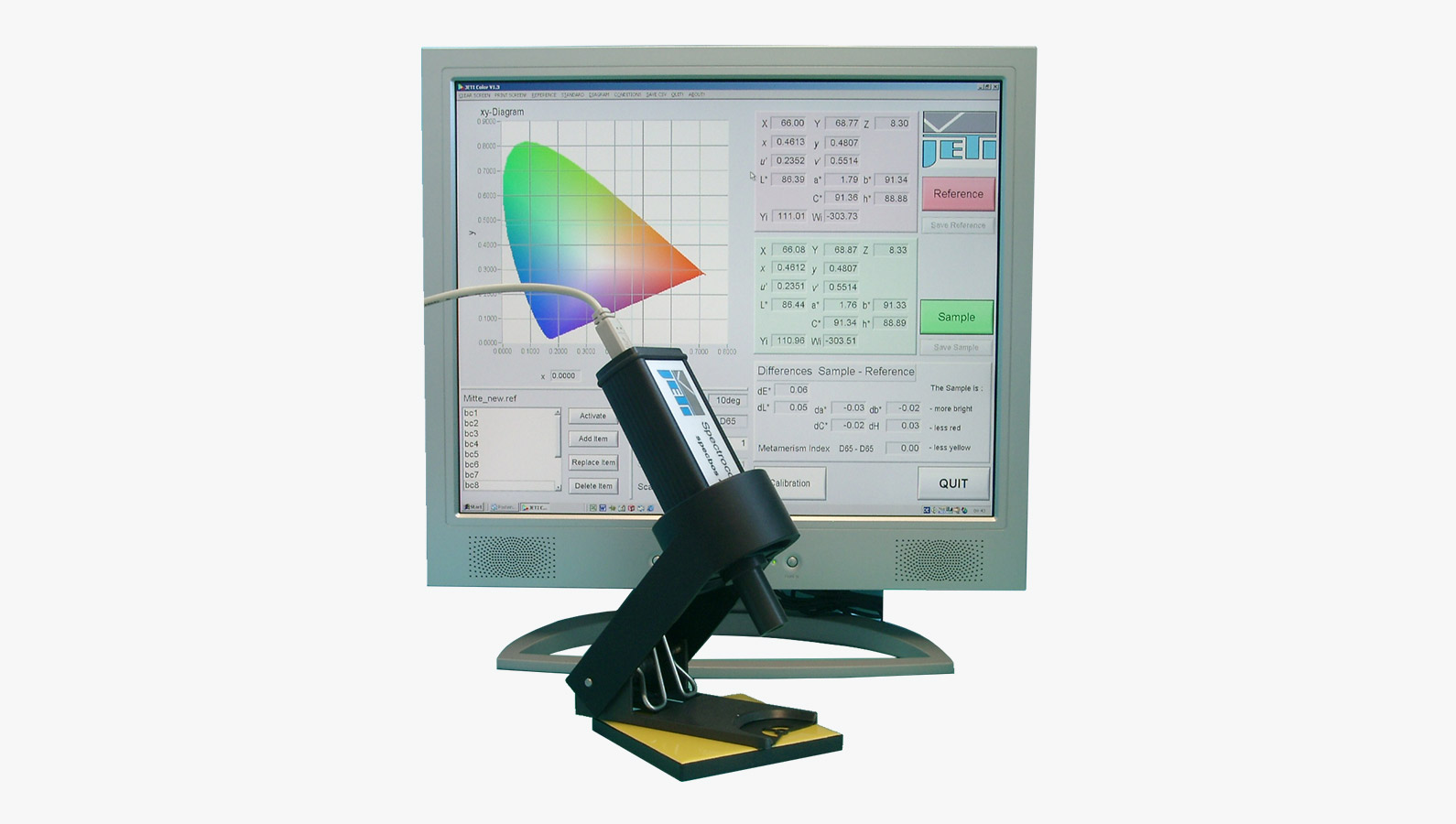

 Spectrocolorimeter (specbos 4001)

• Mechanical and optical alignment test
• Firm- and software update
• Wavelength check and possibly recalibration (low pressure discharge lamps HgAr, software JETI FitTool)
• Sensitivity recalibration with White standard (traceable to BAM)
• (included in software JETI Color, but password protected) → Screenshot JETI Color
• Test measurements (3 times on 12 BCR tiles) to check device stability, device intercomparability and comparability to BCR values
• Issuing of the calibration certificate (please see downloads below)

Spectrophotometer (specbos 2001, specbos 2101), OEM spectrometer

• Mechanical and optical alignment test
• Firm- and software update

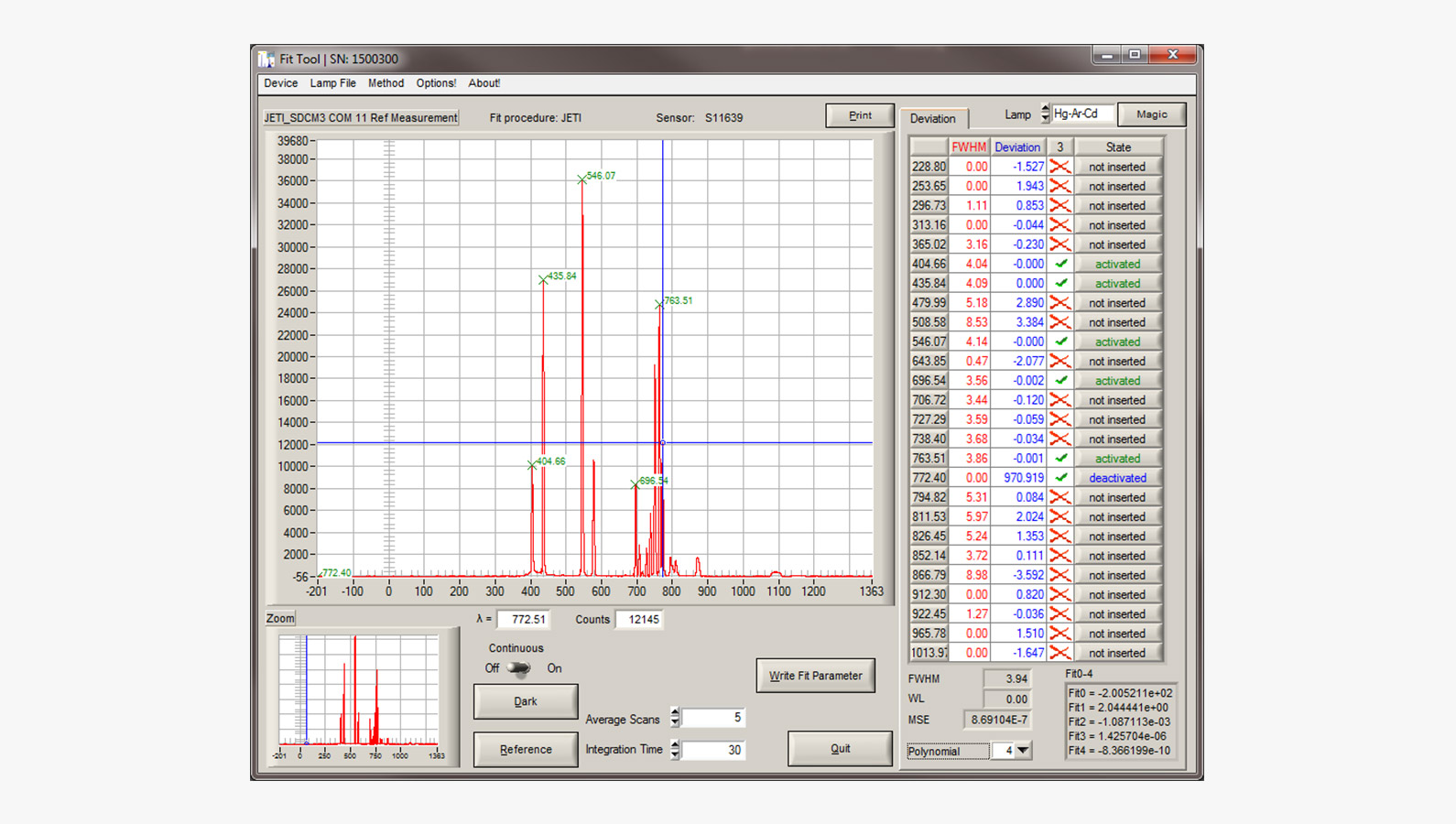

• Wavelength check and recalibration (low pressure discharge lamps HgAr, Cd, software JETI FitTool) → Screen shot see below
• Linearity check (with software JETI VersaSpec)
• Issuing of the calibration certificate (please see downloads below)

Downloads

Instructions for shipment.pdf
Calibration Certificate specbos 1211-2 example.pdf
Calibration Certificate spectraval 1501 example.pdf
Calibration Certificate spectraval 1511 example.pdf
