Measuring mode

• ACC Flicker Lamp: Illuminance mode
• ACC Flicker Display: Luminance mode, with straylight protection tube

Sensitivity

• According to V(λ)

Measuring ranges

• Frequency:                  10 ... 500 Hz
• Flicker:                         0 ... 100 %
• ACC Flicker Lamp:     20 ... 20 000 lx
• ACC Flicker Display:  20 ... 4 000 cd/m²
• Sampling rate:            4 KHz

Measuring spot

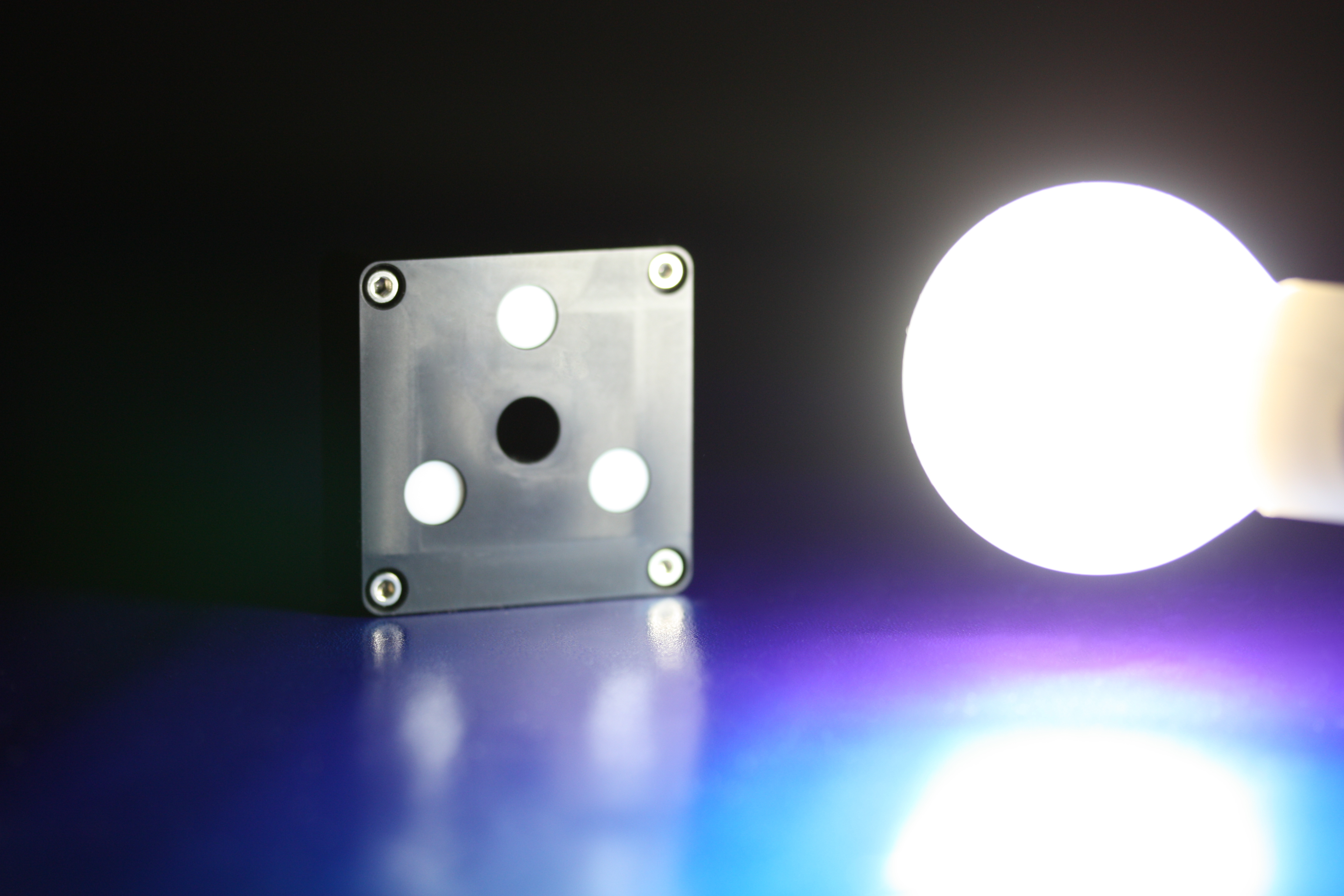

• ACC Flicker Lamp
• 3 x 8 mm diameter in pitch circle of 30 mm diameter

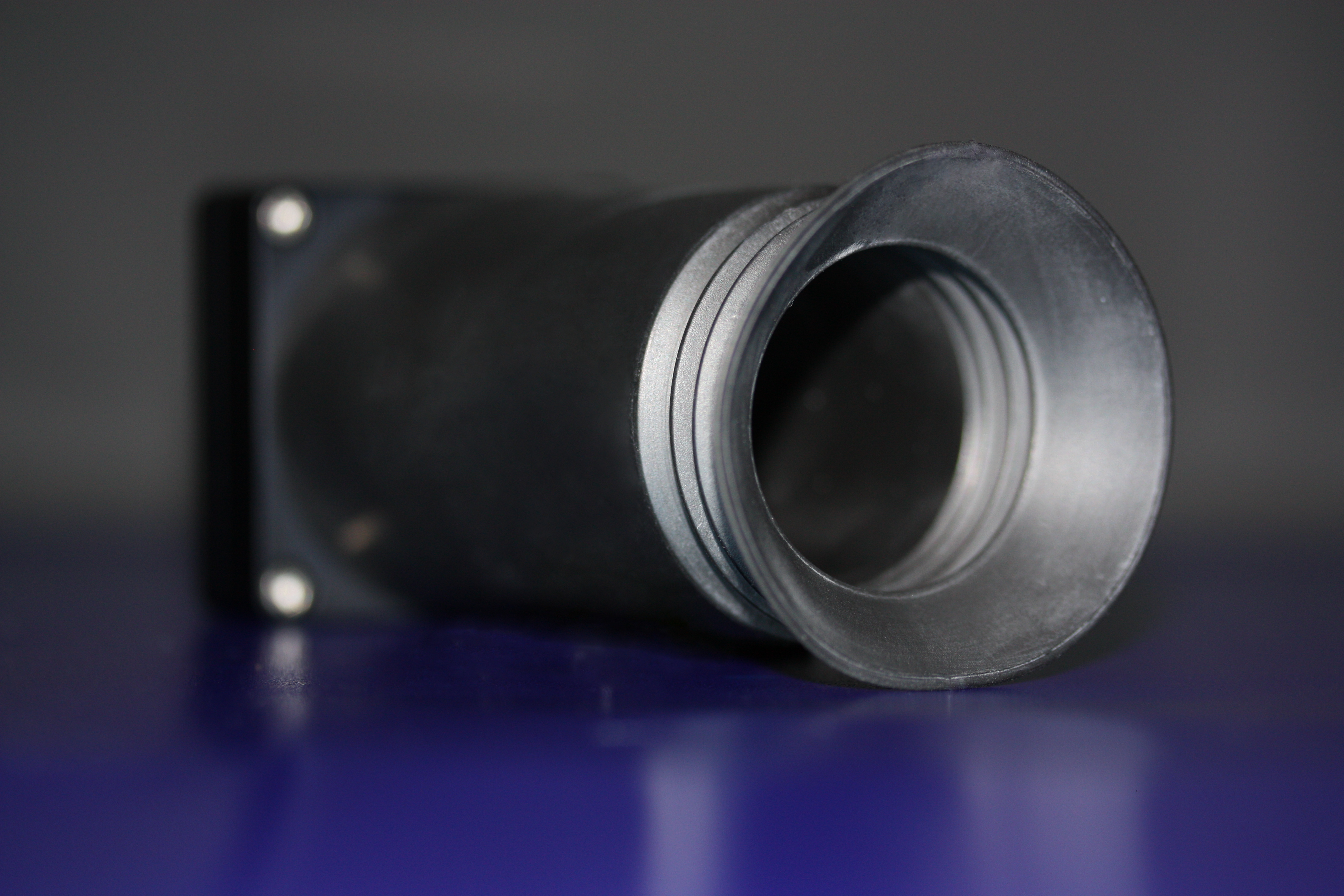

• ACC Flicker Display
• 10 mm diameter in 65 mm distance

Weight

• ACC Flicker Lamp: 56 g
• ACC Flicker Display: 140 g

Operating conditions

• Temperature: 10 ... 40 °C
• Humidity: < 85 % relative humidity at 35 °C

Interface

• USB 2.0 fullspeed

Power supply

• USB powered

Dimensions

• ACC Flicker Lamp: 46 mm x 46 mm x 36 mm
• ACC Flicker Display: 46 mm x 46 mm x 120 mm (incl. straylight
  protection tube)

 ACC Flicker Lamp

• Generally all measurements of lamps and luminaires
• Color adjustment of LED video walls

ACC Flicker Display

• Measurement of displays and measurement of projections
• Color adjustment of broadcast and consumer monitors
• Adjustment of Philips ambilight bias illumination
