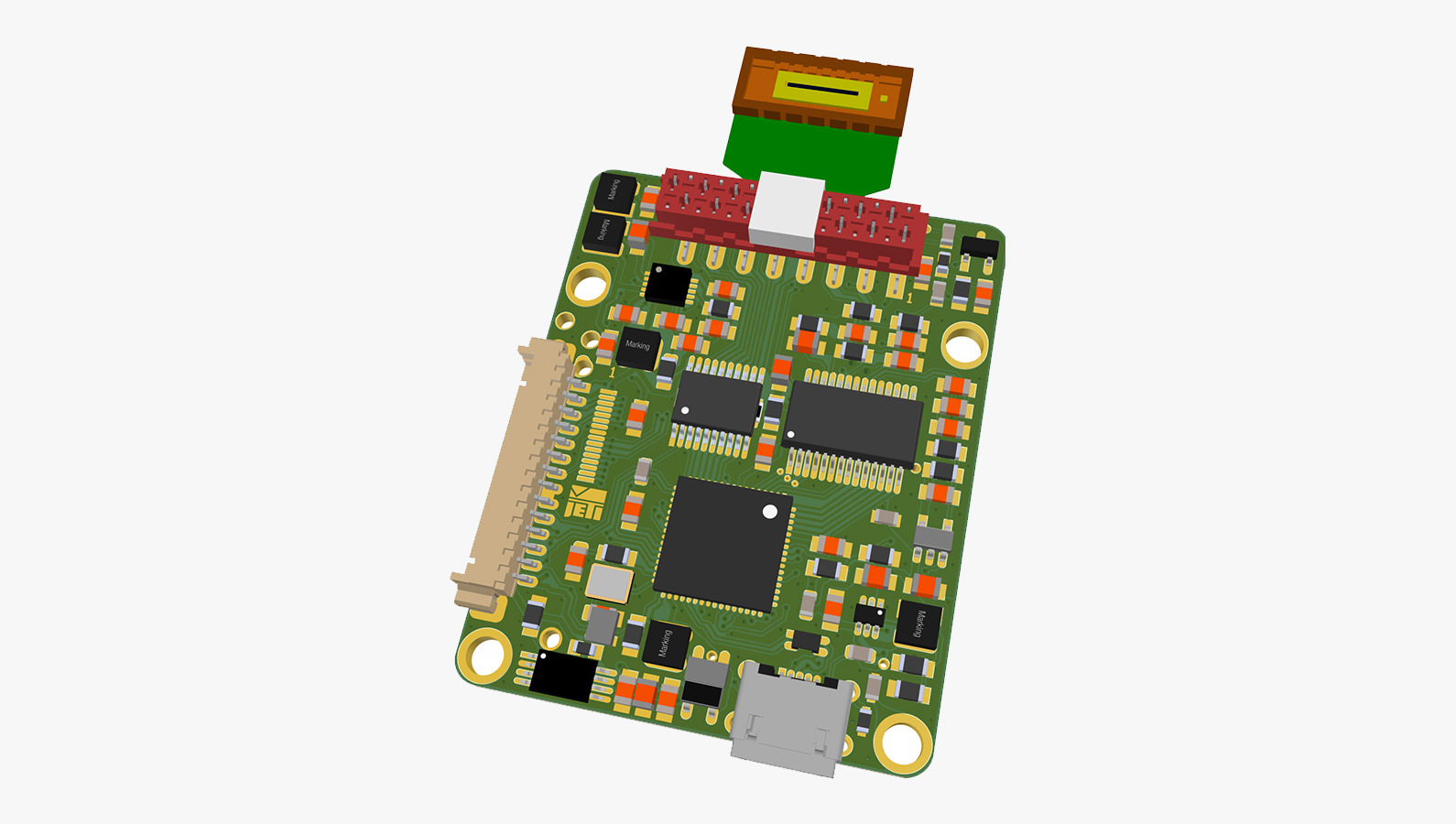

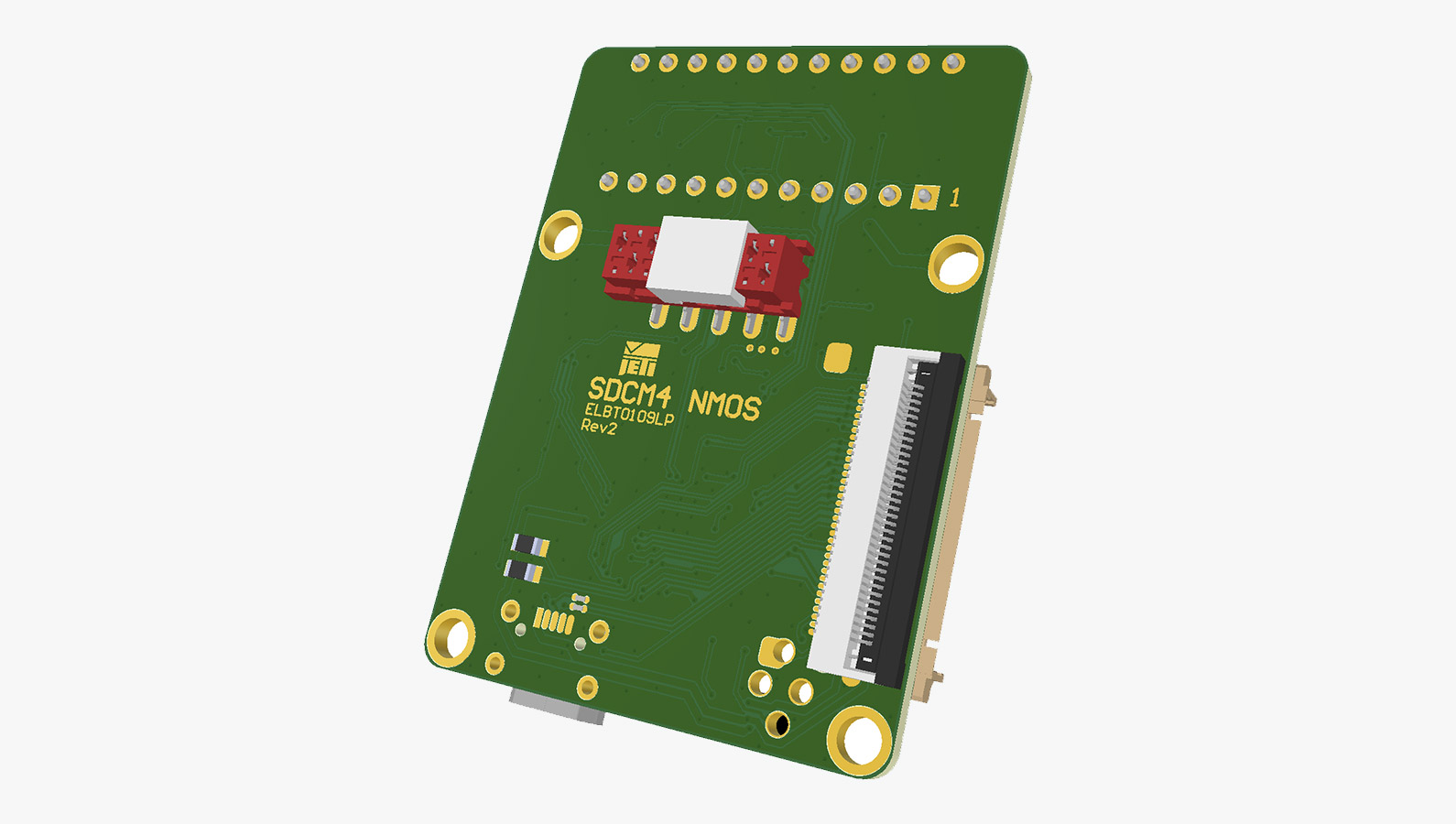

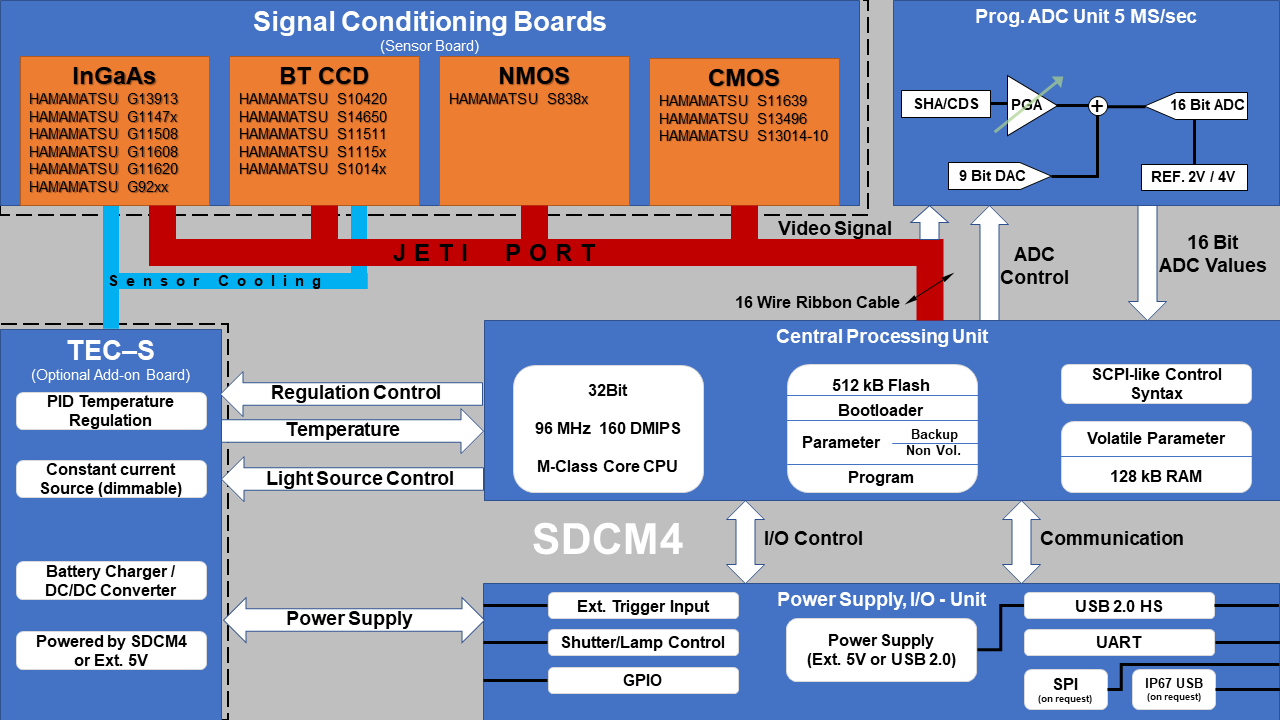

Electrical parameters

• 32 bit, 96 MHz RISC Processor
• Power Supply via USB or 5 V external
• JETI Universal Sensor Connector via 16-pin flat-ribbon-cable
• Trigger input and output, TTL compatible
• Shutter/Lamp control output, firmware configurable
• Flashlamp control with programmable length and interval timing
• Stabilized 5 V Output
• 2 GPIO-Pins, 1 Analog Input (12 Bit, 18 MS/s)*

Communication Interfaces

• USB-HighSpeed (480 Mbit/s, via virtual COM-Port)*
• LV-TTL-UART (12 MBaud, 8N1)*
• SPI (24 Mbit/s, Master/Slave)*

LAN-add-on-Board (planned)

• 10/100 Mbit-Ethernet-LAN with Power over Ethernet support
• WLAN

*maximum theoretical speed, practical values are application specific

Firmware

• Dark counts, reference counts, transmission, absorbance, (pixelwise or in wavelength steps with pixel wavelength fit up to 4th order)
• Readout configuration: Averaging, Oversampling, Offset, Gain, Pixelrange, Pixelbinning…
• Continuous and single-measurement modes
• SCPI like Control Syntax, similar on all JETI electronics
• Windows DLLs

TEC-add-on-Board

• Highly efficient TEC driver up to 4 V, 3 A and <10 mK accuracy
• Constant current source with advanced dimming features up to 2 A for LED’s etc.
• LiPo Battery supply and charger

 Mechanical dimensions

• 45 x 36 x 10 mm³
• Customer specific board shapes and adaptions on request

Documentation

Leaflet Readout electronics

Datasheet

Hardware description

SDCM4 Hardware Description.pdf
