Spectrometer JETI DE50

DE50

Broadband OEM spectrometer

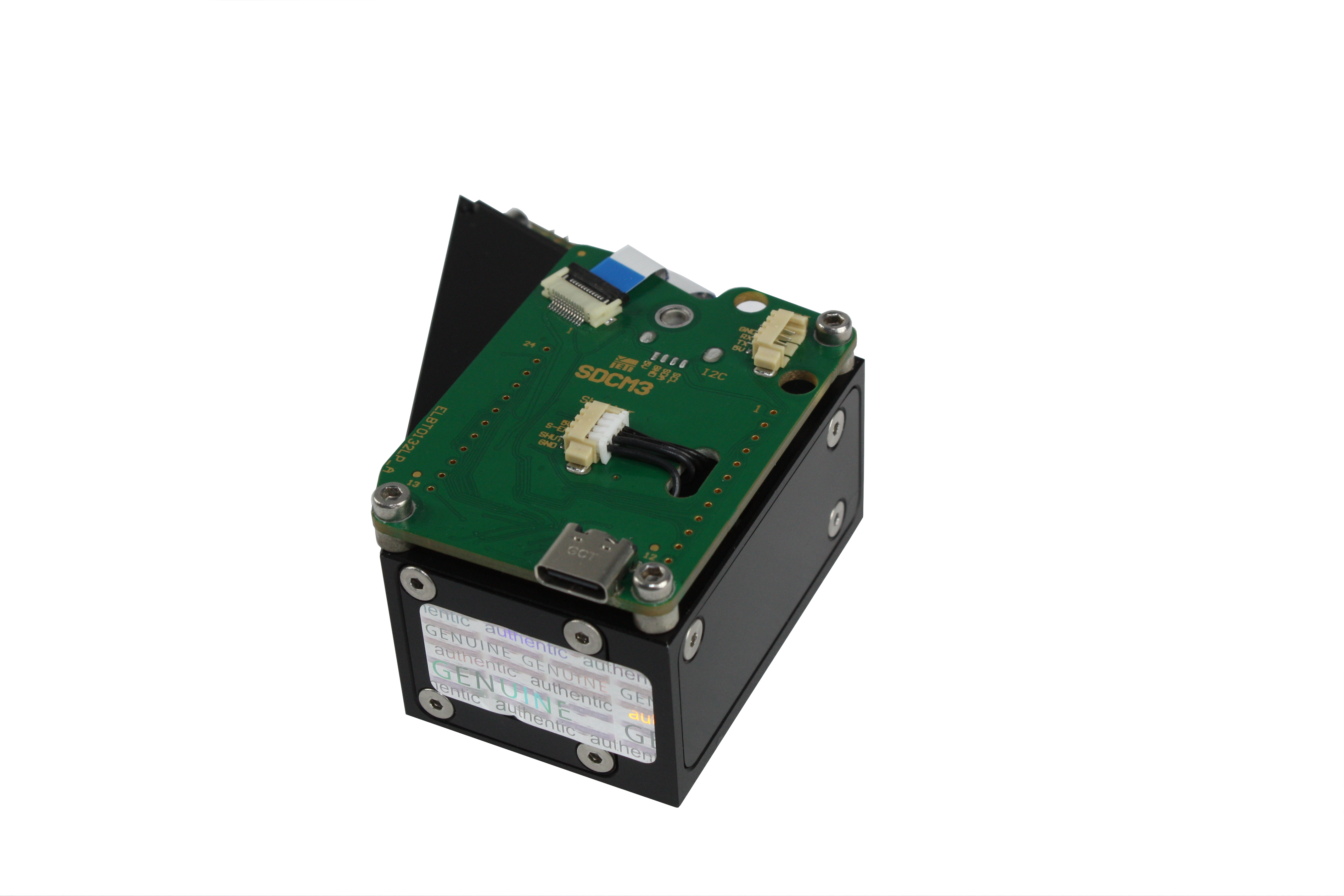

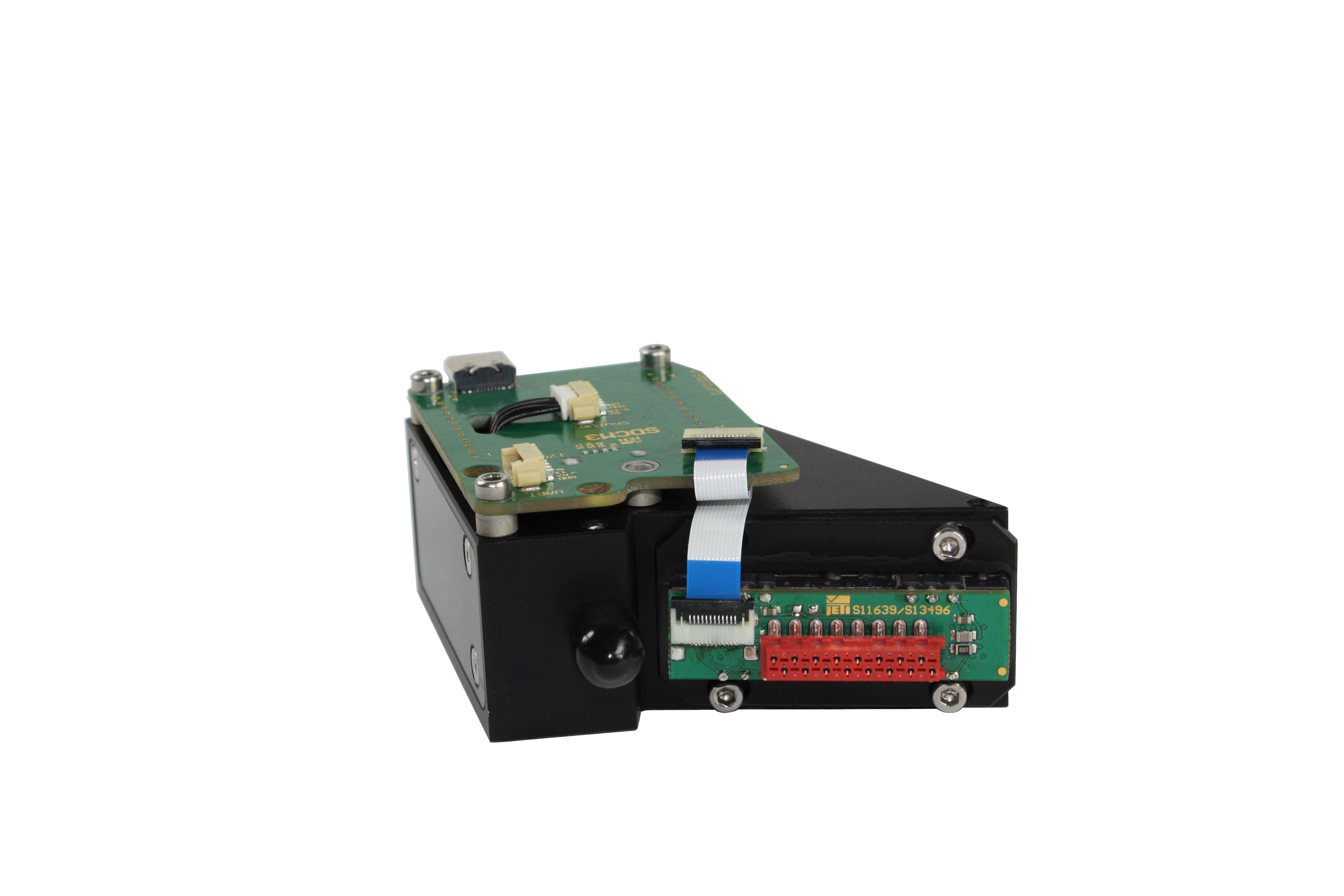

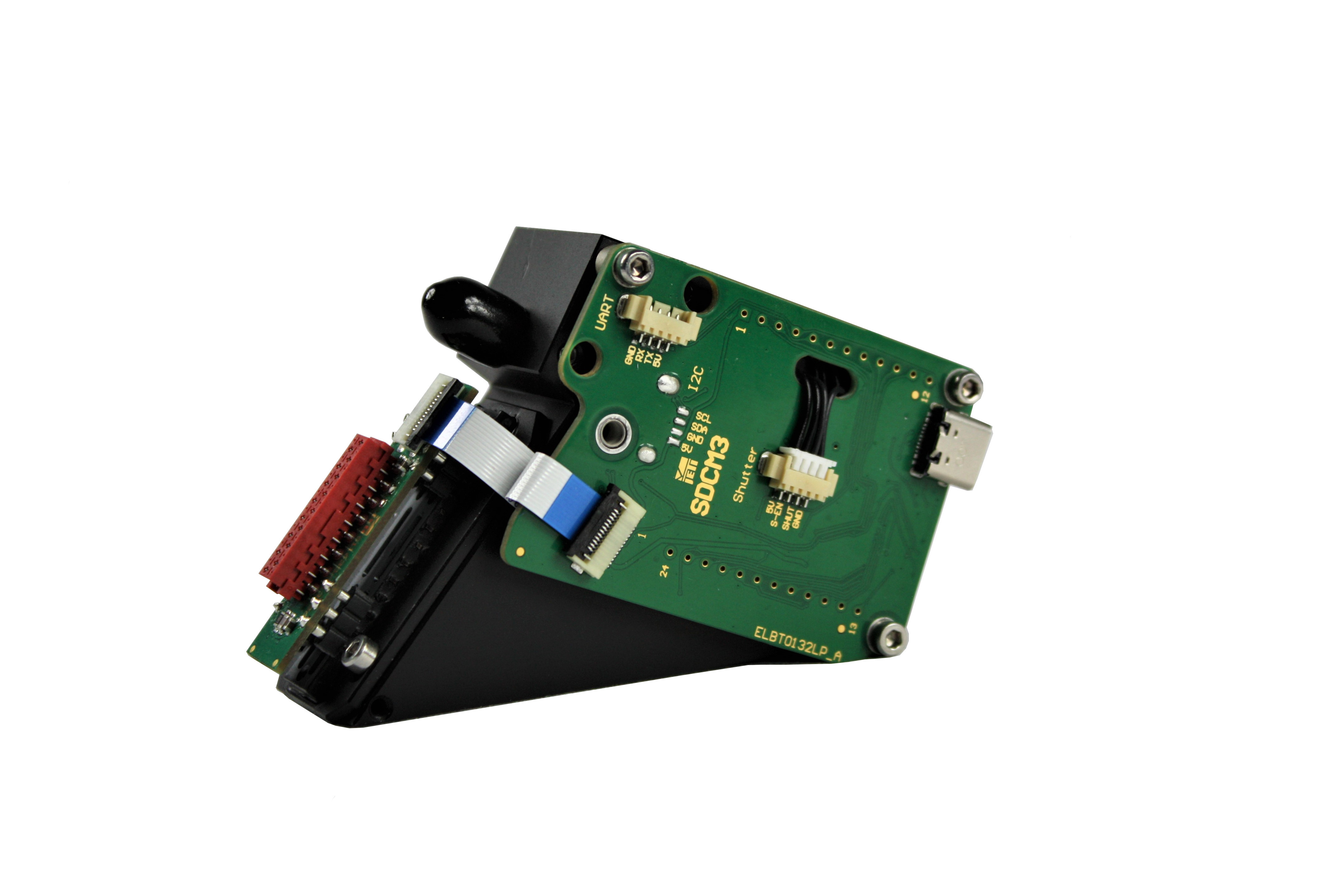

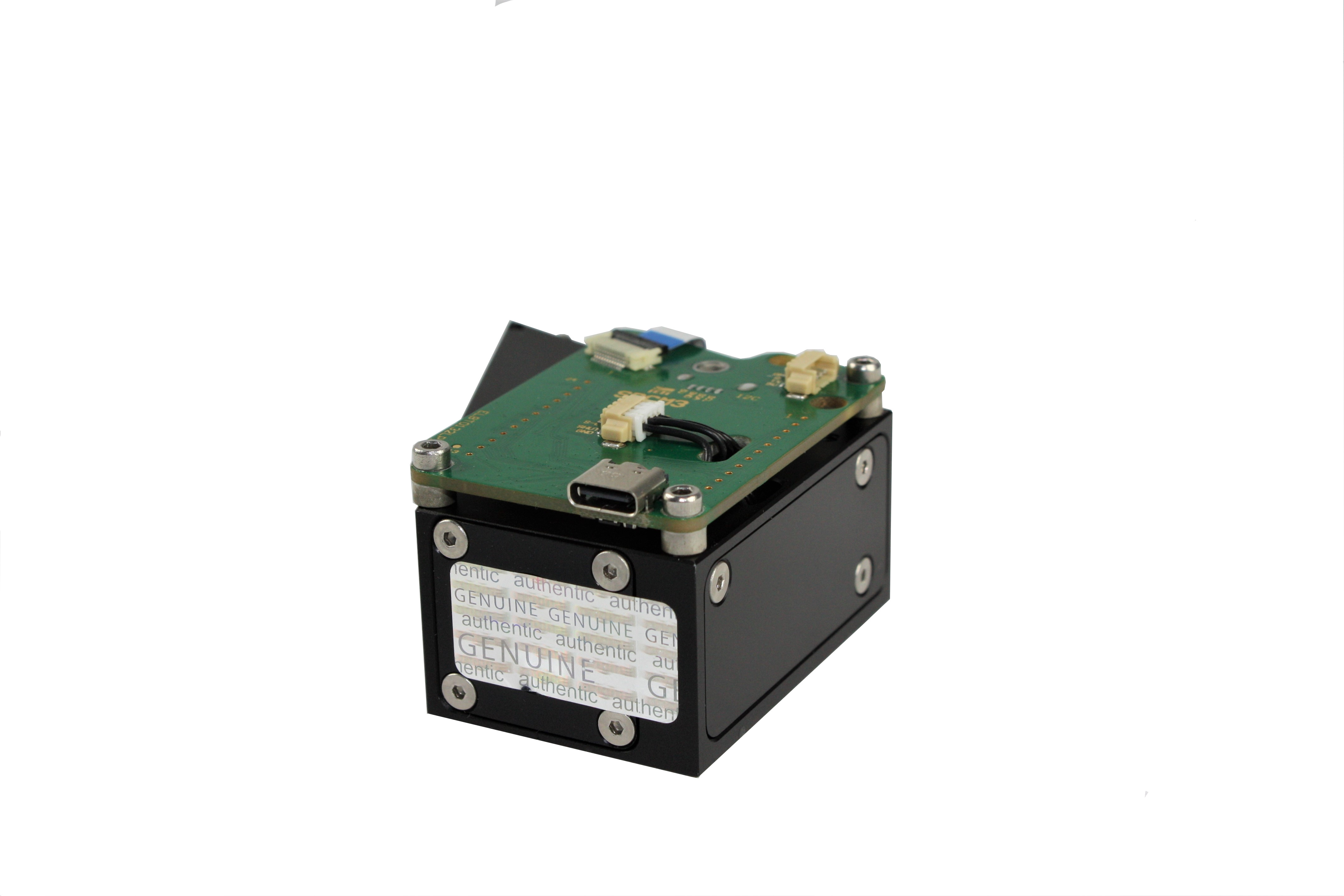

The new JETI broadband OEM spectrometer DE50 is a flat field spectrograph combined with powerful processing electronics. It is available in two versions: DE50 basic and DE50 expert.

The spectrometer can be operated with the intuitive measuring software JETI VersaSpec.

Spectrometer JETI DE50

Main characteristics of DE50

Wavelength range 200 ... 1000 nm (DE50 expert)
Wavelength range 350 ... 1000 nm (DE50 basic)
High optical resolution over the whole spectral range
High sensitivity in UV, Vis and NIR spectral ranges
High dynamic range
Compact design
Easy integration into customer systems
In-built mechanical shutter

Applications

Ellipsometry
Plasma physics
Colorimetry/ Spectroradiometry
Biochemistry
Analytical instrumentation
Thickness measurement
Online analyzer
Fluorescence spectroscopy
In process measurement of interference layers

Controller functions

Internal storage of wavelength-pixel relation
Preprocessing of data, dark signal correction, absolute calibration
Internal calculations like averaging, interpolation, transmission, reflexion, absorption, color coordinates
Dedicated control syntax (SCPI compliant)

Advantages

Very low astigmatism
Low stray light
Hard- and software trigger
Onboard Ethernet Interface (DE50 expert)
Processing of spectral calculations

Optical parameters

Spectral range:
- 200 … 1000 nm (DE50 expert)
- 350 ... 1000 nm (DE50 basic)
Optical resolutions
- ≤ 4 nm FWHM (50 µm slit)
- optionally ≤ 2.0 nm FWHM (20 µm slit), other slit sizes on request

Max. wavelength error:
- ± 0.3 nm (HgAr line source)
Stray light:
- < 0.1 % (ASTM E387, GG495, λ = 420 nm/ 600 nm)

Electronical parameters

Informations will follow shortly.

Optical input

F-SMA connector for 200 µm fiber

Dimensions

More parameters can be found in the datasheet

DE50.pdf

Fiber optic cables
Fiber Optic Cables (both sides terminated by SMA connectors) are available for all JETI spectrometers. The normal flexible cable has a length of 1 m. Additionally, a nonflexible version with a length of 10 cm is offered.

Fiber coupled diffusor
The optical fibers can be combined with a fiber coupled diffusor to convert the spectrometers into Irradiance meters. A suited calibration is optionally available.

Communication

TN09 Testing the communication with Terminal.pdf

Firm- and software

TN16 Support for Linux and Mac OS X.pdf

Documents

Operating instruction

Operating Instructions RU60.pdf

Datasheet

DE50.pdf

Software, Drivers and Firmware

Software JETI VersaSpec

Demo version
- JETI offers you a demo version of JETI VersaSpec for testing. With the demo version you can get a first insight into the software.
  - JETI VersaSpec DEMO VERSION (GRÖße)

Full version
- To download the full version of the software you have to be logged in (see in menu "Login").
- Actual software version: V5.9.72
- Download size: GRÖßE MiB

JETI VersaSpec Changelog

Software JETI SDK

JETI SDK V4.6.8 (4.9 MiB)
Actual software version: V4.6.8

JETI SDK Changelog

Firmware

Actual firmware version:
Please contact us for the latest firmware version.

Drivers

Download the actual drivers from ftdichip.com

Firmware commands

Operating Instructions Firmware SPECFIRM.pdf
